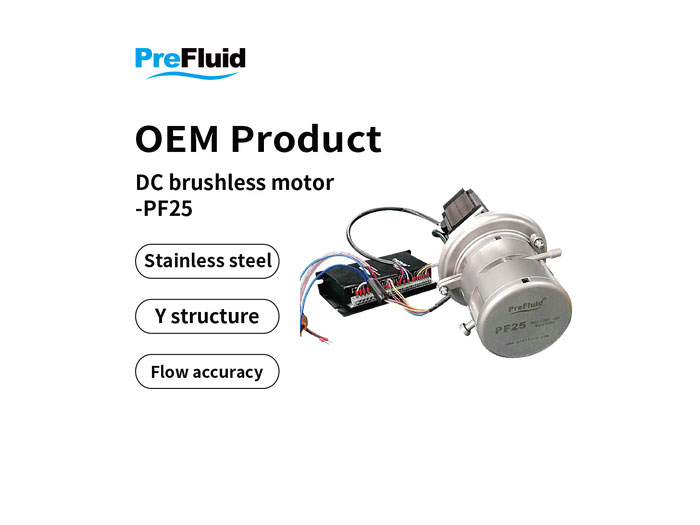

OEM DC brushless motor-PF25 introduction

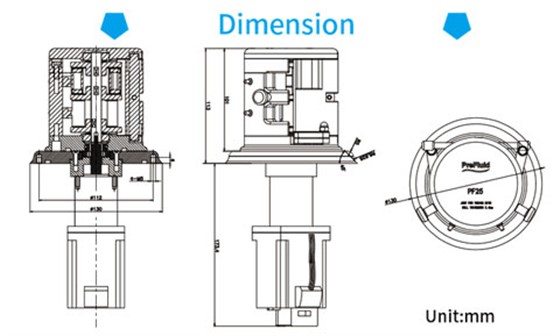

OEM DC brushless motor-PF25 Dimension

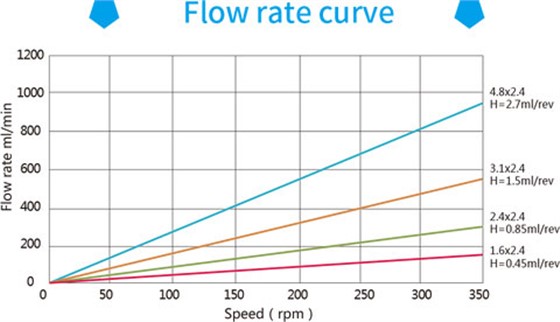

OEM DC brushless motor-PF25 Flow Curve
Features and benefits
- • Apply to high accuracy filling; All stainless steel material, easy to clean
- • Roller cross design for two channels, stable and accurate
- • Be horizontal or vertical installation
- • When pump head is vertical installed, the upper pressure block and pump body by
- • connecting rod, replace tube can be operated by single hand;Equipped with pre-friction system, reduce tube abrasion
Technical summary
| Product selection | |
| Model | DC brushless motor -PF25 |
| Drive | FDTV servo driver |
| Motor | DC brushless motor |
| Pump head | PF25 |
| Speed range | 1~ 350rpm |

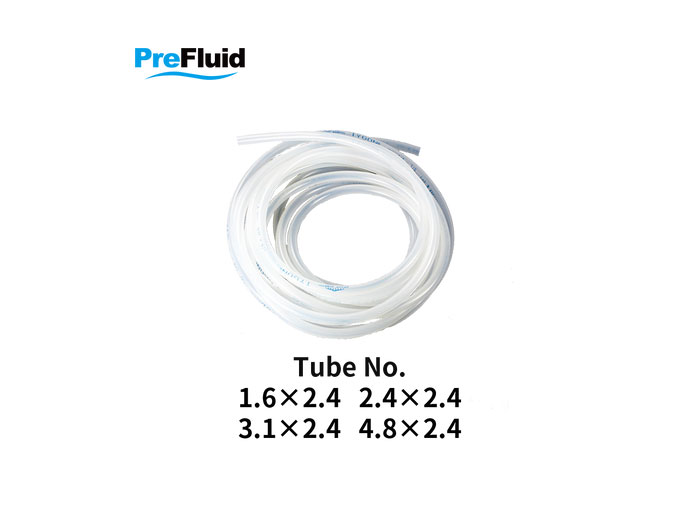

| Tube No. | 1.6x2.4 2.4x2.4 3.1x2.4 15# 24# |
| Working environment | Temperature 0- -40 C, relative humidity<80% |
