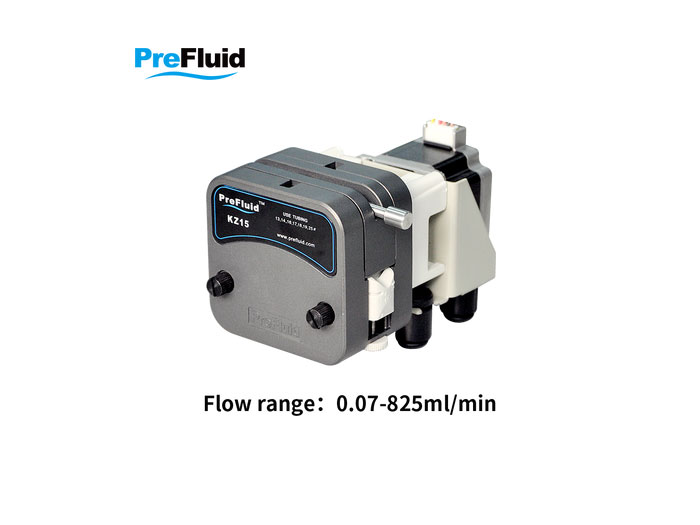

OEM Stepper motor-KZ15 introduction
KZ15 pump head shell is made of alloy material with special surface treatment and corrosion resistance. Stable and reliable operation.

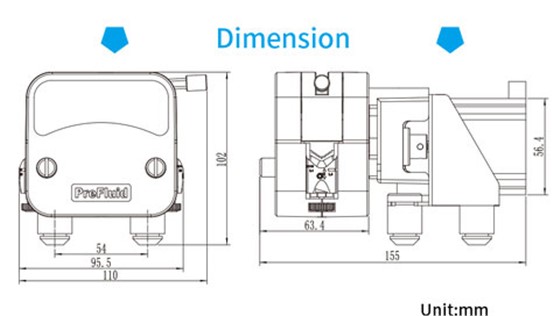

OEM Stepper motor-KZ15 Dimension

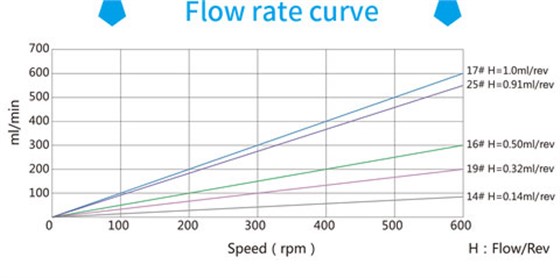

OEM Stepper motor-KZ15 Flow Curve
Features and benefits
- • The pump head is convenient to load and unload the hose, and adopts the pressure block and the body separation structure
- • Alloy material housing, surface special treatment, corrosion resistance
- • It is suitable for hose with 1.6 wall thickness, and adopts new clamping pipe method
Technical summary
|
Product selection |
|
|
Model |
KZ15- -3044 Stepper Motor |
|
Drive |
PR214 |
| Motor | 3044 Stepper Motor |
| Pump head | KZ15(AL,6 rllrsr) |

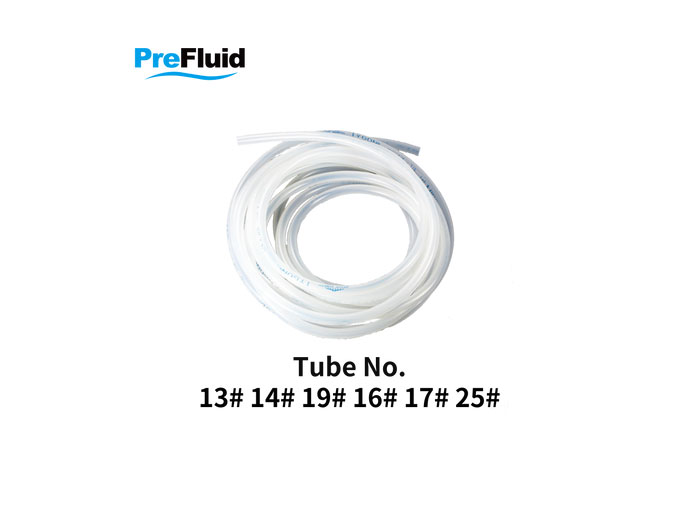

| Tubing | 14# 19# 16# 25# 17# |
| Speed | 1-300RPM |
| Control | Analog control and communication control,Baud rate38400 |
| Power supply | DC24V,rated power<50W |
| Environment | Temp.0- 40C,humidity<80% |
