Product description
Economic type ，plastic case and special coating treatment, blue and white, beautiful and generous. Internal use of brushless motor, servo drive, motor running smoothly, accurate speed, less noise.
Product Details
-
-

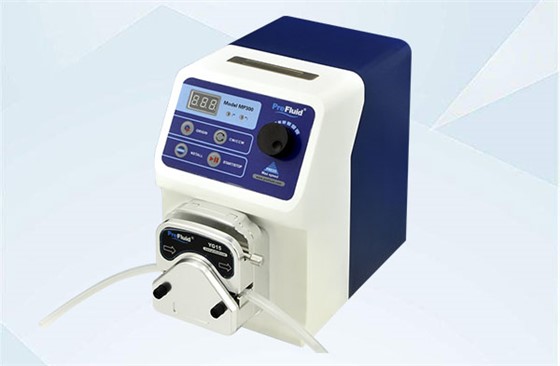

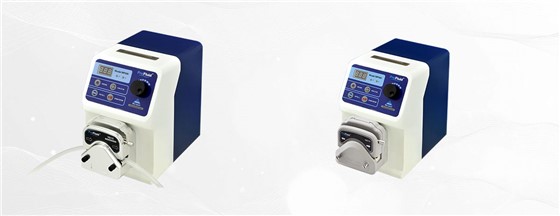

MP300 PERistALtic PUMP IS an ECONOMICAL washing pump, plastic case with special coating treatment, blue and white, beautiful and generous.
Internal use of brushless motor, servo drive, motor running smoothly, accurate speed, less noise. Green power switch, green display window, in line with ETL, ROSH, electromagnetic compatibility standard ISO13485 certification requirements, mainly suitable for hospital surgical debridement.
Product Features
MP300 Medical peristaltic pump fully complies with ISO13485 requirements;
Ultra low shear
Stable linear flow at 2 bar pressure.
Designed for downstream bioprocessing
Economic type ，plastic case and special coating treatment, blue and white, beautiful and generous. Internal use of brushless motor, servo drive, motor running smoothly, accurate speed, less noise.
Green power switch, green display window, in compliance with ETL, ROSH, electromagnetic compatibility standards ISO 13485 certification requirements, mainly applicable to the hospital surgical debridement.
Product performance
Technical parameters
| MP300-YG15 Medical peristaltic pump Technical parameters | |
| Model | MP300-YG15 |
| Speedrange | 1-600rpm |
| Speed resolution | 1rpm |
| Adjust the way | Rotary encoder continuous adjustment |
| According to party in | The front three LED digital speed display |
| External control | Rev. Stop, direction, speed (4 ~ 20 mA) |
| Communication methods | RS485 interface, Modbus RTU protocol |
| Applicablepowersupply | AC220V/110V(±10%) 50/60Hz |
| Power consumption | ≤100W |
| Workingenvironment | Environmental temp.0~50°c，relative humirity<80°c |
| Dimension | 200mmx196mmx433mm |
| Weight | 10kg |
Tube parameters
Tubing Kit Recommendations
Datasheet
-
MP300-YG15 Medical peristaltic pump instructions(ZH)
PDF - 735kb
Manuals
-
MP300-YG15 Medical peristaltic pump
MP300说明书YG15160528
